Analog Portable Audio Amplifier
Portable Audio Amplifier using only analog components with Baxandall passive tone controller
Project Gallery
About This Project
Designed a Portable Audio Amplifier using only analog components.

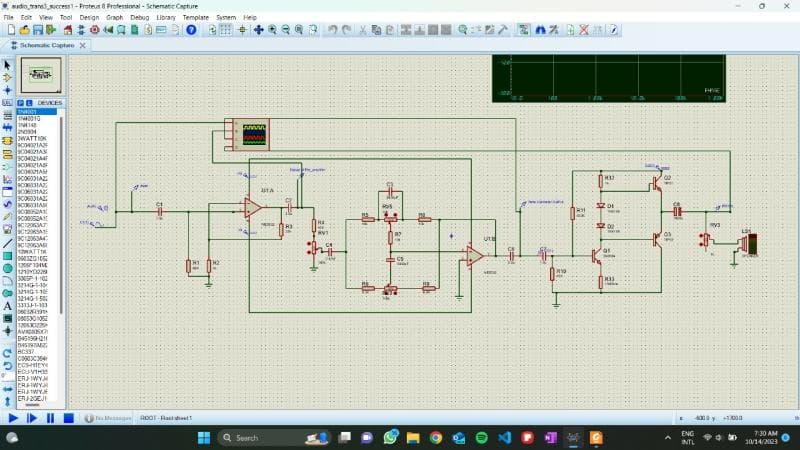

The device is capable of amplifying audio input from any audio-generating device through three main sub-circuits: • Preamplifier • Tone controller (Baxandall passive tone controller) • Power amplifier

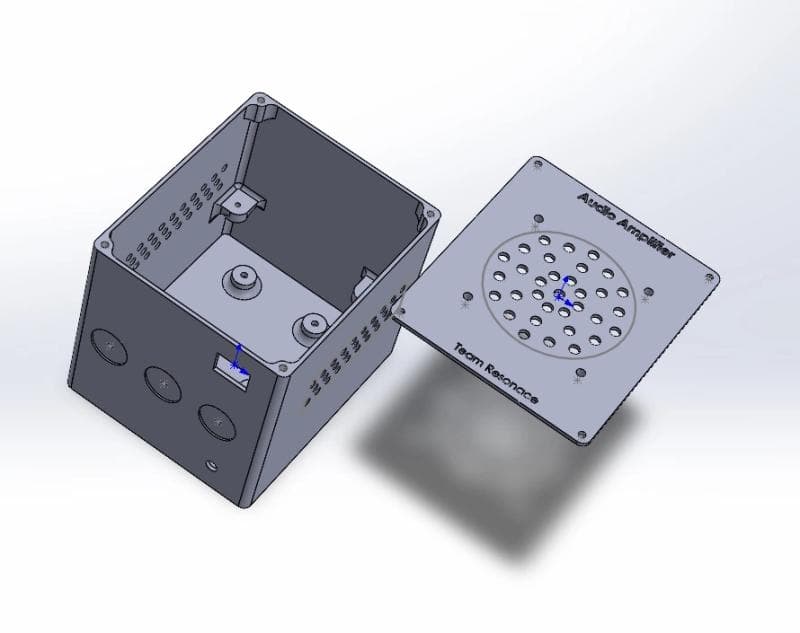

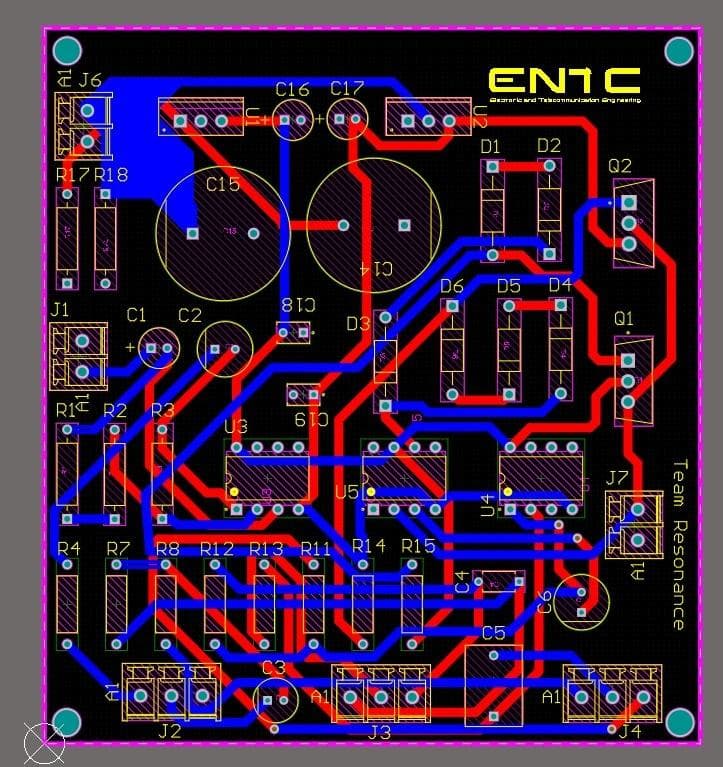

Complete with custom PCB design and 3D-printed enclosure.
Technologies Used
Analog ElectronicsPCB DesignBaxandall Tone ControllerAltiumSolidWorks
CategoryIoT/Embedded
TimelineDec 2023
Technologies5
